Linear Power Supply - Executive
$30.00

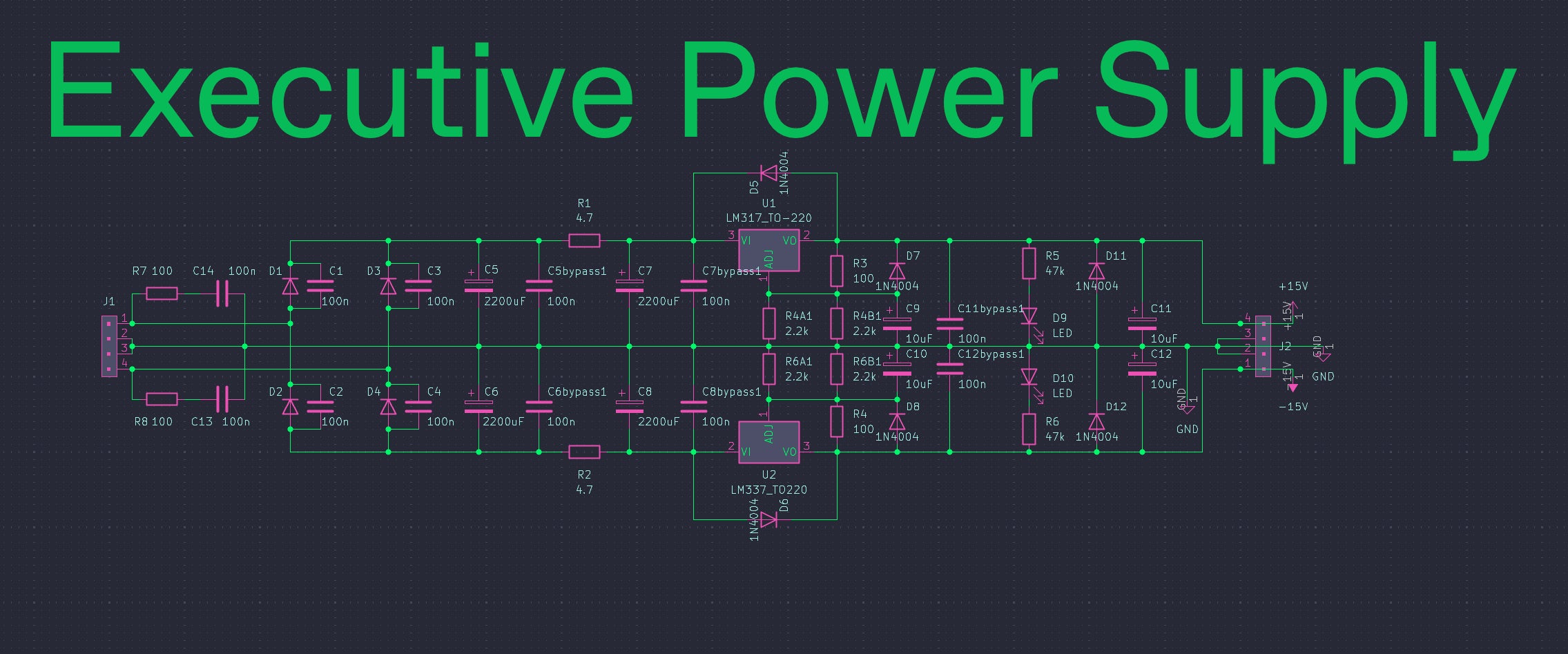

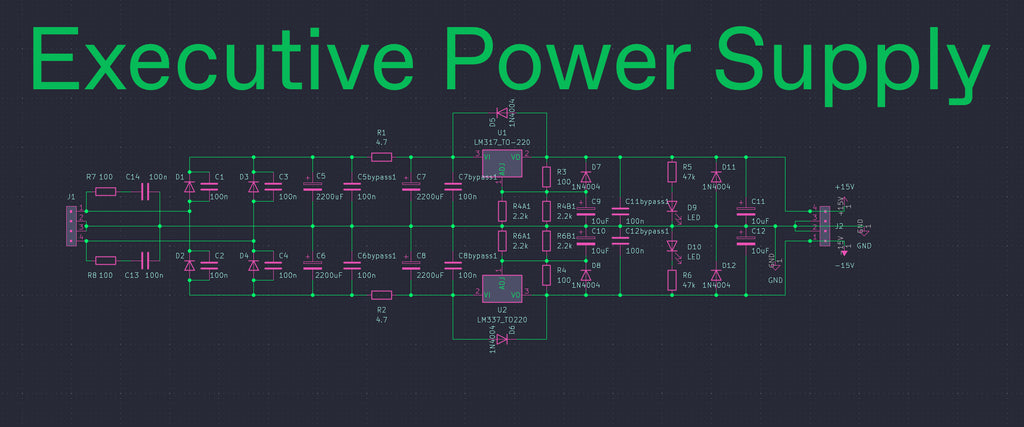

A complete regulated bipolar power supply on one board. Add a transformer and mains hardware — nothing else.
Supplied as a bare PCB.
Specifications
| Output | Regulated bipolar ±15 V |
| Regulation | LM317 / LM337, on board |
| Rectification | Discrete bridge, SiC Schottky — no reverse recovery |
| Filtering | CRC per rail, 2200 µF / 4R7 / 2200 µF |
| Transformer | Antek AN-0215, 25 VA, 2×15 V — not included |
| Supplied as | Bare PCB |
Rectification
The diodes are ST STPSC6H065D SiC Schottkys, 650 V / 6 A. No reverse recovery charge, so no switching spike, and turn-off does not drift with temperature. The 650 V rating is unavoidable — SiC Schottkys are not made below 600 V.
Rails
Set by 100 Ω against two 2.2 kΩ in parallel. Change the pair, change the rail — the board is not locked to ±15 V.
Bill of materials
Transformer & mains parts
Not included.
Op amp board
An unpopulated PCB designed around these rails. Add it to your order above.
